iCE40 Feather

Posted Aug 11, 2022
By Josh Johnson
1 min read

iCE40 Feather is a Lattice iCE40UP5K FPGA in the Adafruit Feather form factor.

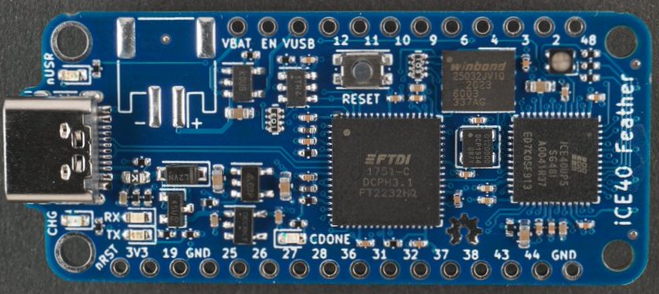

top of pcb

Features

  • Lattice iCE40UP5K FPGA.
  • 20 IO in the standard Feather pinout.
  • 6 extra IO on AREF and extra pads on back of board.
  • FT2232 enables both programming and communications over UART through a Type-C USB connector.
  • QSPI flash.
  • Onboard RX/TX, user, and RGB LEDs.

Source files can be found on Github.

This post is licensed under CC BY 4.0 by the author.
